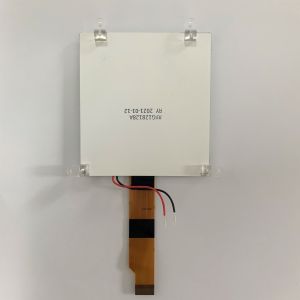

RYG128128A Square 128x128 Dot Matrix LCD Module STN Gray Positive Display 3.3V Logic.
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Model | RYG128128A |
| Display Format | 128 x 128 Dots |
| LCD Type | STN (Gray), Positive, Transflective |
| Polarizer Mode | Transflective, Positive |
| Viewing Direction | 6 O'clock |
| Drive Method | 1/128 Duty, 1/12 Bias |
| Module Size | 67.7 (W) x 138.3 (H) x 2.0 (T) mm |
| Driver IC | ST7541-G (COG) |
| Viewing Area | 64.7 (W) x 60.4 (H) mm |
| Unspecified Tolerance | ±0.2 mm |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
Short Description:
Square 128x128 Dot Matrix LCD, STN Gray Positive Display, ST7541 Driver, 3.3V Low Power, FPC Connection, White LED Backlight. Ideal for Industrial HMI & Portable Devices.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month
product warranty
OEM/ODM and customization services available, Professional R&D
team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry
RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the
medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily.
Often seen in cell phones, tablets, cameras and countless other
devices, this technology offers several hundreds of thousands of
colors with a high pixel count to offer supreme visual clarity. In
addition, all TFTs are available off the shelf with resistive and
capacitive touch panel options.
Product Overview
The RYG128128A is a square-format 128x128 dot matrix LCD module. Featuring STN technology with a gray positive display mode (black dots on gray background), it delivers clear, low-glare viewing under any lighting condition. Driven by the high-performance ST7541 controller (COG package), it supports 1/128 duty and 1/12 bias, operates at a low 3.3V logic voltage for minimal power consumption. The standard FPC interface is compatible with 6800/8080-series MPUs for easy system integration. Integrated white LED backlight ensures excellent visibility in low-light environments. Its robust construction and wide operating temperature range make it an ideal display solution for Industrial HMI, portable medical devices, test instruments, and advanced consumer electronics.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
|
|
