| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYG12864M |
| Certification : | SGS ROHS |
| Supply Ability : | 300k/Month |
| Delivery Time : | 25~28 Working Days |
| Price : | Negotiable |

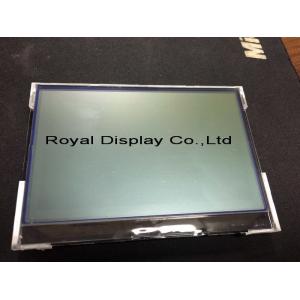

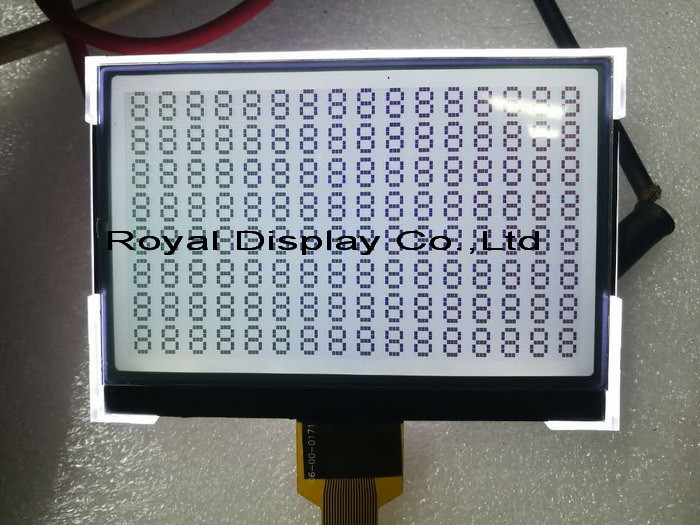

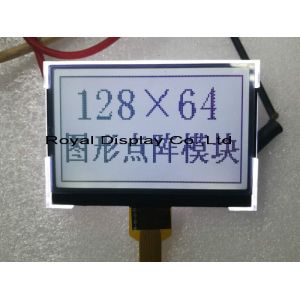

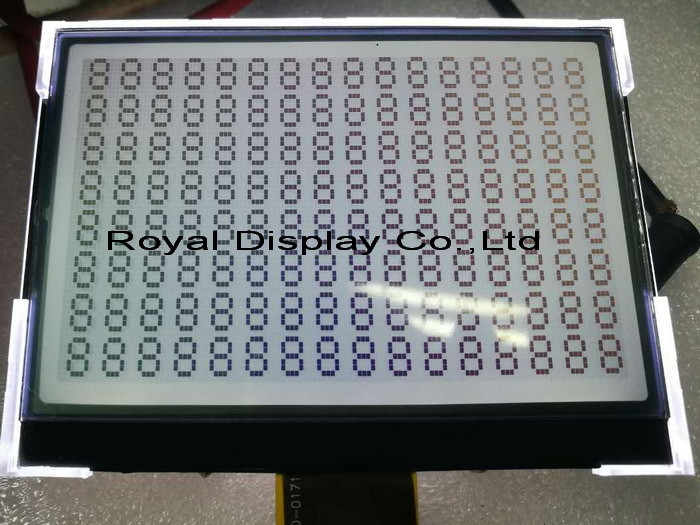

Graphic COG LCD Module 128X64 Dots With ST7567A RYG12864M FSTN Positive Black On White
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
| Item | Description |
| Product Name | 128*64 dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128*64 |
| Outline Dimension(mm) | 96.2*67.4 |
| Viewing Area(mm) | 88*55 |
| Pixel Size( mm) | 0.60 x 0.72 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7567A |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -30º C~70º C |
| Storage Temp | -30º C~80º C |
|
|
