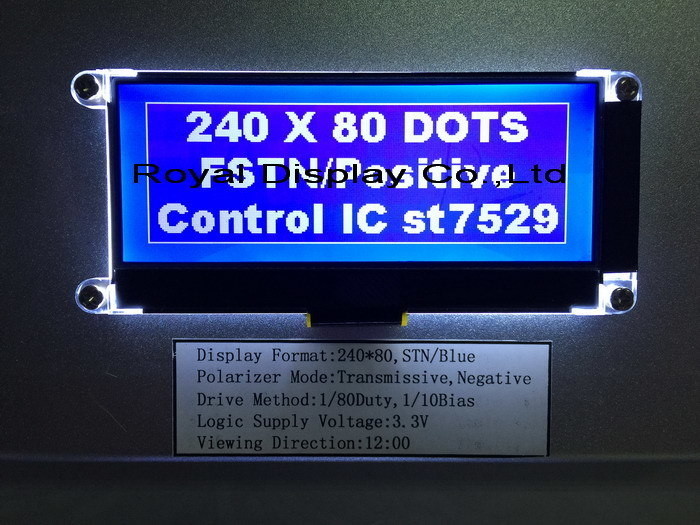

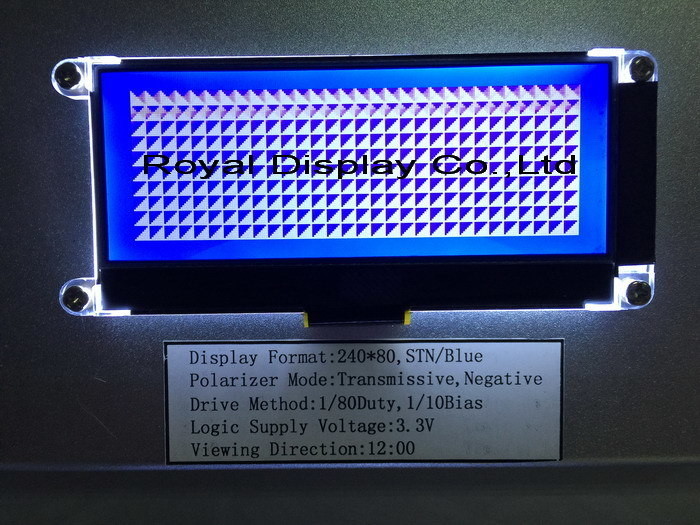

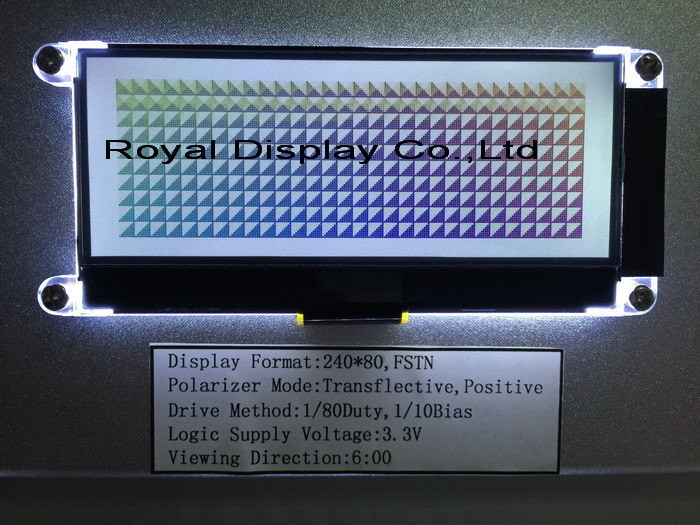

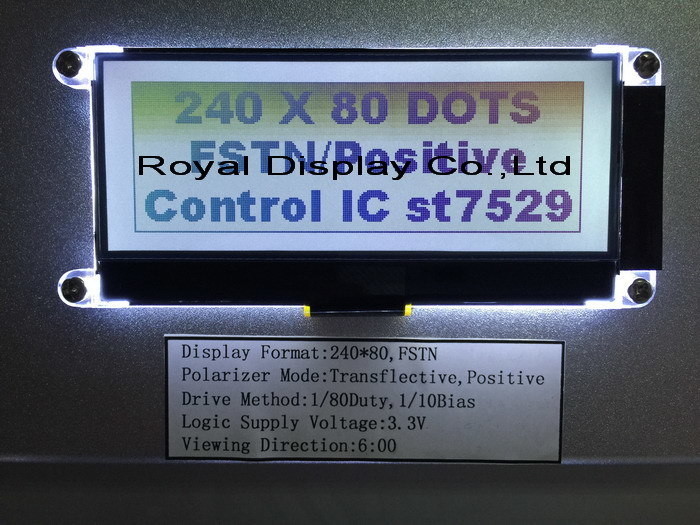

240X80 Transflective FSTN Module COG LCD Display
PRODUCT DESCRIPTION
1. 240x80dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 240x80dots Graphic LCD Module |
| Model No. | RY24080COG |
| Dot Format | 240x80 |
| Outline (mm) | 160*109 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, Transflective |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7529 |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
