Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | Royal Display |
| Model Number : | RYT0350RDW01 |
| Certification : | ISO9001 |
| Price : | negotiation |
| Delivery Time : | 15-25 working days |
| Payment Terms : | TT/ Paypal |
| Supply Ability : | 300k pcs/ Month |

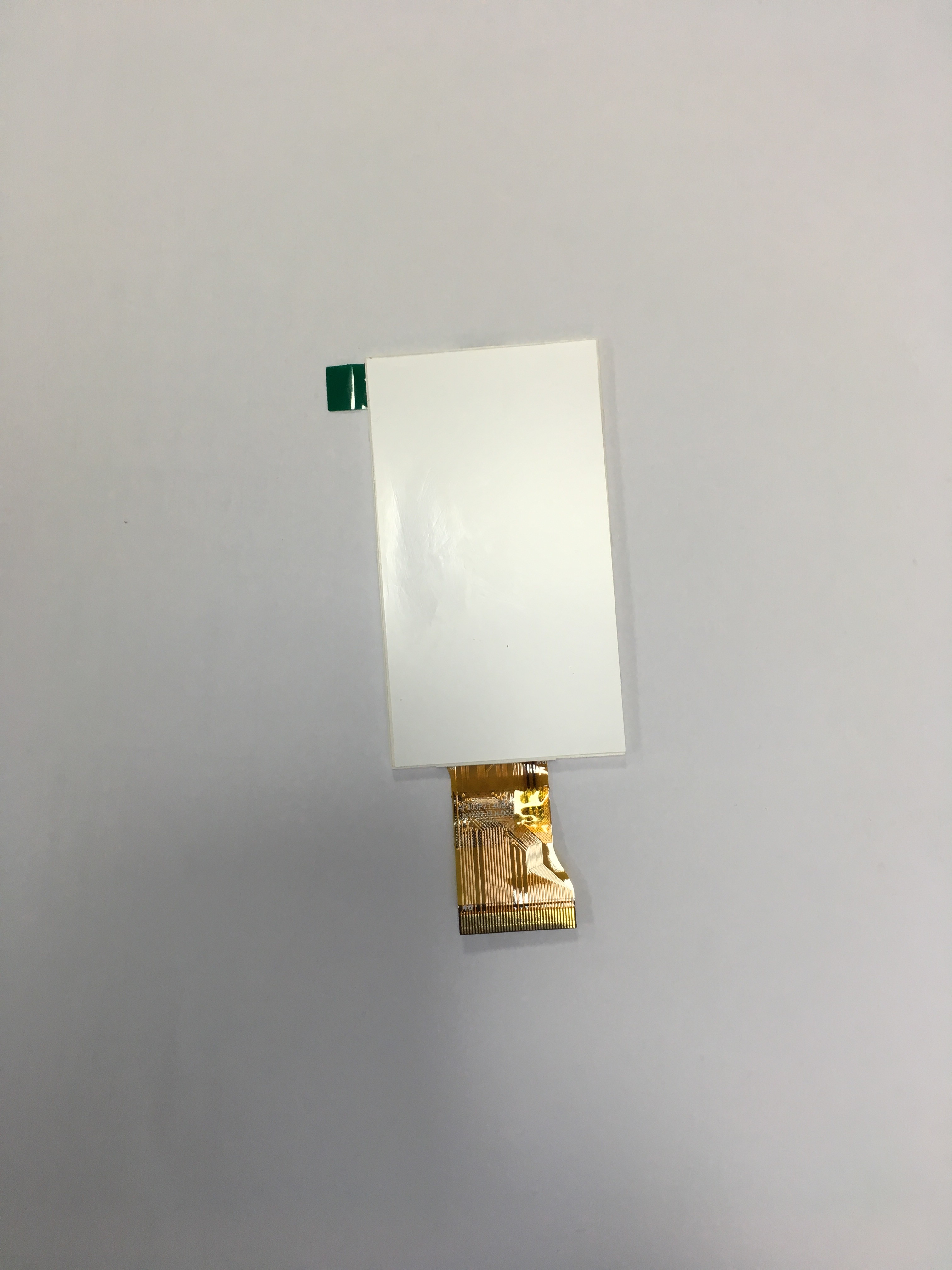

TFT-LCD liquid crystal display is a thin film transistor type liquid crystal display. The TFT liquid crystal true color screen is equipped with a semiconductor switch for each pixel. Each pixel can be directly controlled by point pulses, so each node is relatively independent and can Continuous control not only improves the response speed of the display screen, but also accurately controls the display color levels, so the colors of the TFT LCD true color screen are more realistic. Here are some specific data about our 3 inch TFT LCD display module.
| Item of general information | Contents |
| LCD Type | 3.0Inch(Diagonal) TFT |
| Recommended Viewing Direction | 3 O'Clock |
| Dot pitch(W × H×T)(mm) | 0.06825(W)×0.1535(H) |
| Active area(mm) | 65.52(W)×36.84(H) |
| Pixel pitch (W × H) | 42.9(W)×75.0(H)×2.65(D) |
| Color arrangement | Delta RGB |
| Display Color | 16M |
| Backlight Type | Side-Lightt |
| Backlight Number of LED | 4 pcs |
| Luminance | 300(IF=20mA) cd/m2 |
| Uniformity | 80% |
| Operating Temp | -20º C~60ºC |
| Storage Temp | -30º C~80ºC |
1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.
2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.
3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)
4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.
5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.
6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.
A 3-inch TFT LCD can be used in various applications that require a
small-sized display with color capabilities.
| Feature Phones | Basic mobile phones |
| Point-of-Sale (POS) Systems | Portable or handheld POS systems |
| Portable Gaming Devices | Handheld gaming consoles, portable gaming devices |
| Digital Cameras | Some compact digital cameras |
| IoT Devices | Small sensors, connected devices and etc. |
| Portable Media Players | MP3/MP4 players and etc. |
| Wearable Devices | Fitness trackers, heart rate monitors, or activity trackers |
| Measurement Instruments | Small measurement instruments or handheld meters |
| Industrial Control Panels | Control panels or human-machine interfaces (HMIs) |
| DIY Electronics Projects | Small electronic gadgets, prototyping, or customized user interfaces. |
We provide technical support and services for TFT LCD Module, including:
1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery
fee.
2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling
charge -- Provide drawing -- confirm drawing -- make tooling &
samples -- Samples finished -- Delivery via freight or sea collect
3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by
Email or Fax , Then we will send you an Invoice for deposit
payment. We will talk about more detailed information of your
order. Any question, pls do not hestiate to contact us.
4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and
any requirements, pls do not hestiate to tell me.
5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit
in advance and balance before shipping as order amount.
|
|
