Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYD2125VV01 |
| Certification : | SGS, ROHS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 300K pcs/month |
| Delivery Time : | 15~25 working day |
Product Description

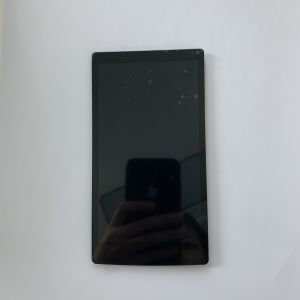

The 5.5-inch FHD TFT screen uses TFT (thin film transistor) liquid crystal technology, which displays images by controlling the liquid crystal of each pixel. TFT technology has the advantages of high refresh rate, high color performance and wide viewing angle, and can provide good image quality and visual effects.
| Item | STANDARD Value |
| LCD type | FHD TFT |
| LCD size | 5.5 inch(Diagonal) |
| Vision Area | 68.64x 121.56mm |
| Outline Dimension | 70.64(W) x 129.21(H) x 1.47 (D)mm |
| Display Color | RGB |
| Viewing Direction | ALL |
| Viewing Angle | ALL |
| Display Mode | Normally white/Transmissive |
| Driver IC | HX8399C |
| Display Resolution | 1080*RGB*1920 |
| BL LED or Color | 14 Chip White LED |
| INPUT CURRENT | 60mA 3.0-2.2V |
| Operating Voltage | 2.8V |
| COMPLIABLY | ROHS |
| Top & Tst | -20˚C ~ +70˚C &-30˚C-~+80˚C |
About TFT LCD Display
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
The Resistive touch panel senses a touch by measuring where contact is made on the glass. It is independent of temperature and humidity and simple to integrate independent of a separate controller chip.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.
Features
1. Customizable FPC cables, LED backlights, and bezels
2. Capacitive and Resistive options available for every display
3. Most products are kept in stock and can ship same day
4. Multiple interfaces available
5. Broad selection of off the shelf products
6. Sunlight readable options available
Applications
The 2.4-inch TFT LCD display is a common LCD display with small size and resolution, and is widely used in various electronic devices and application scenarios. The 2.4-inch LCD Module finds applications in various electronic devices and systems, such as handheld devices, industrial control panels, medical instruments, automotive display, consumer electronics, embedded systems, test and measurement equipments, home appliances and so on.
FAQ
1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.
2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.
3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery
fee.
4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the
production time.
5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment
by clients → Lead time is confirmed by Royal Display → Shipping
instrction by Clients → Delivery → Cargo tracking → Receipt of
cargo
|
|
